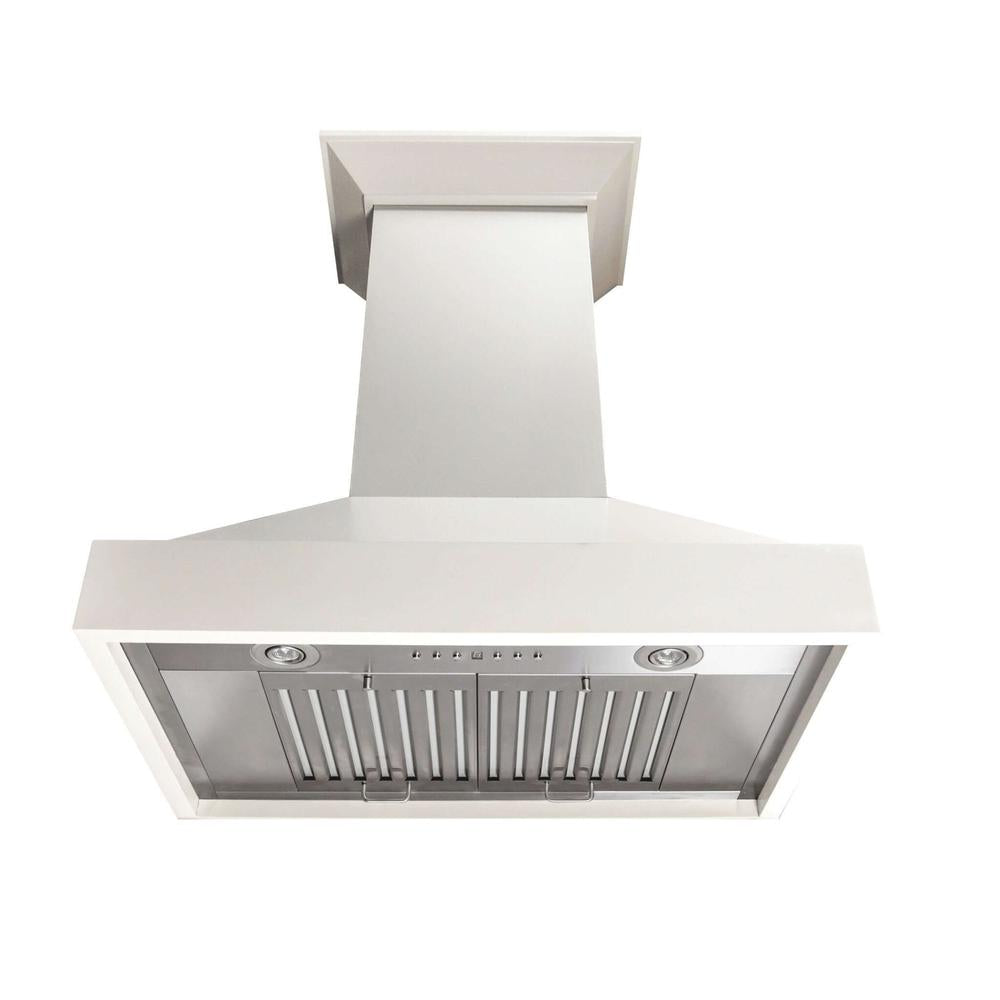

ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30) main image.

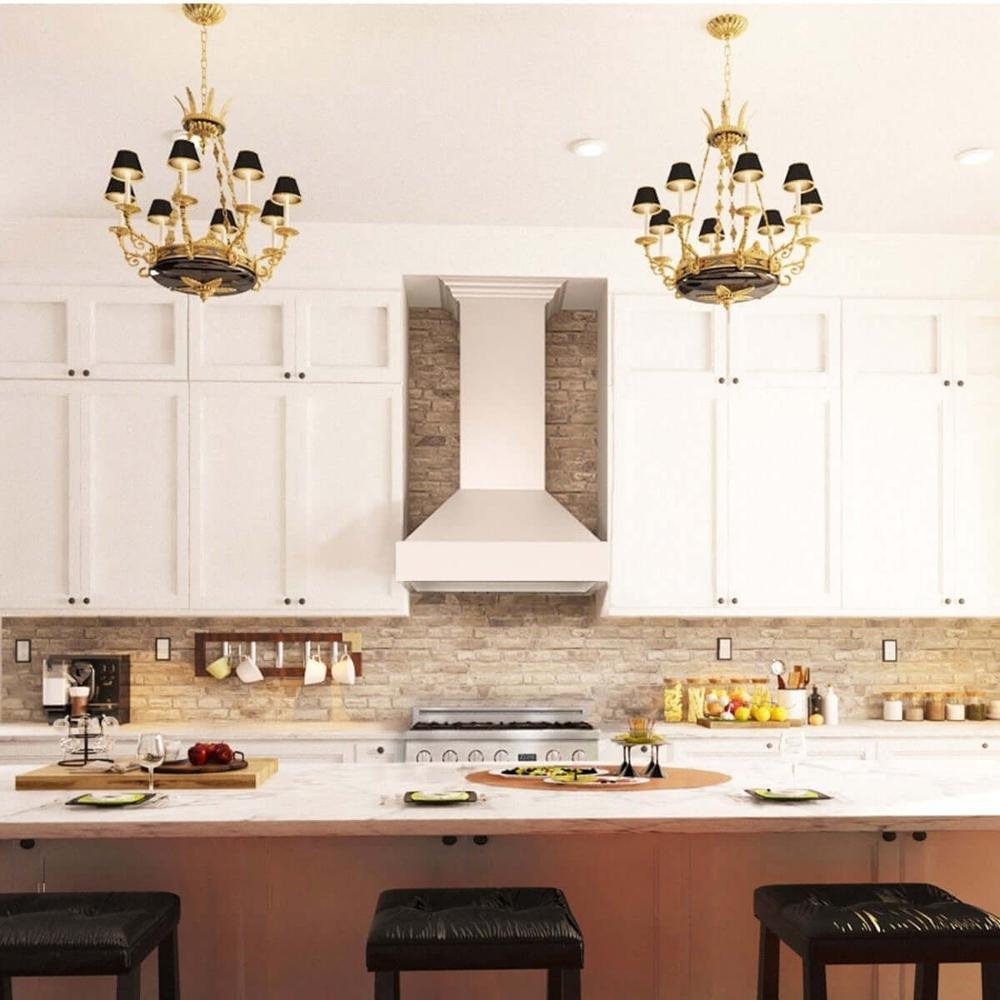

ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30)

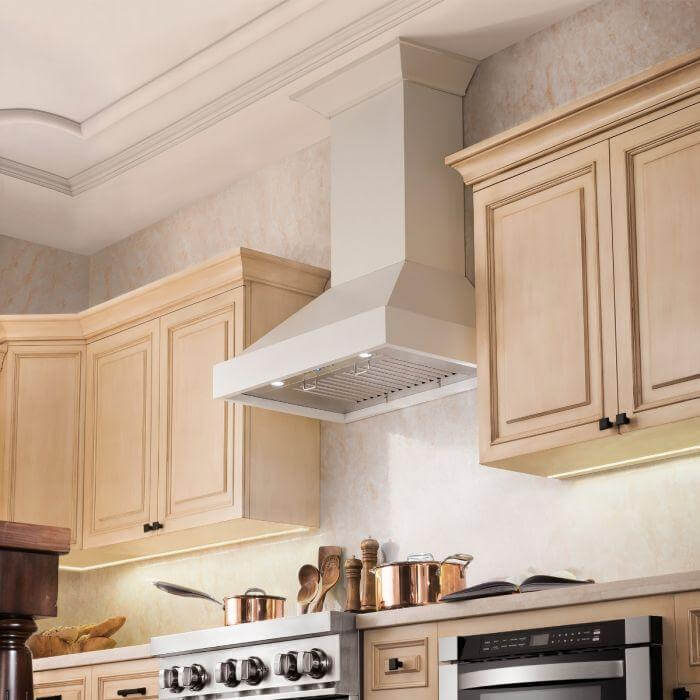

ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30)

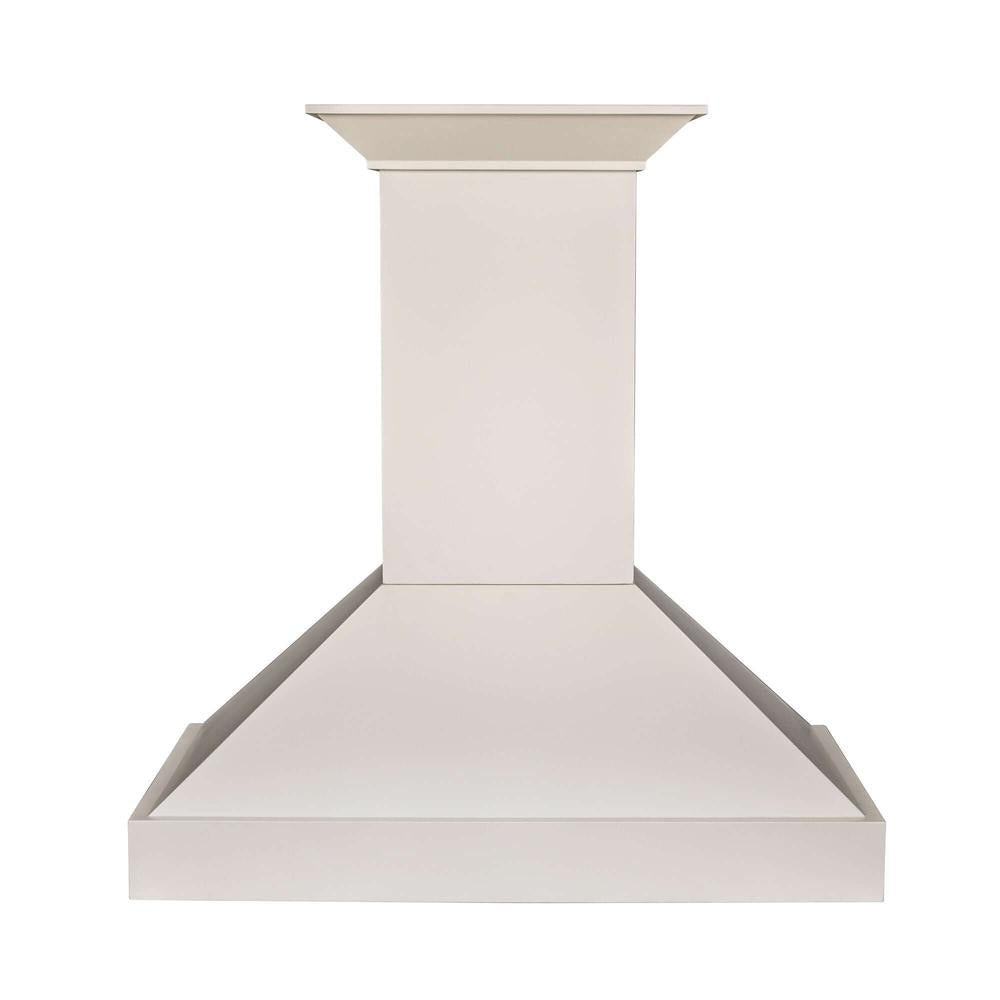

ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30)

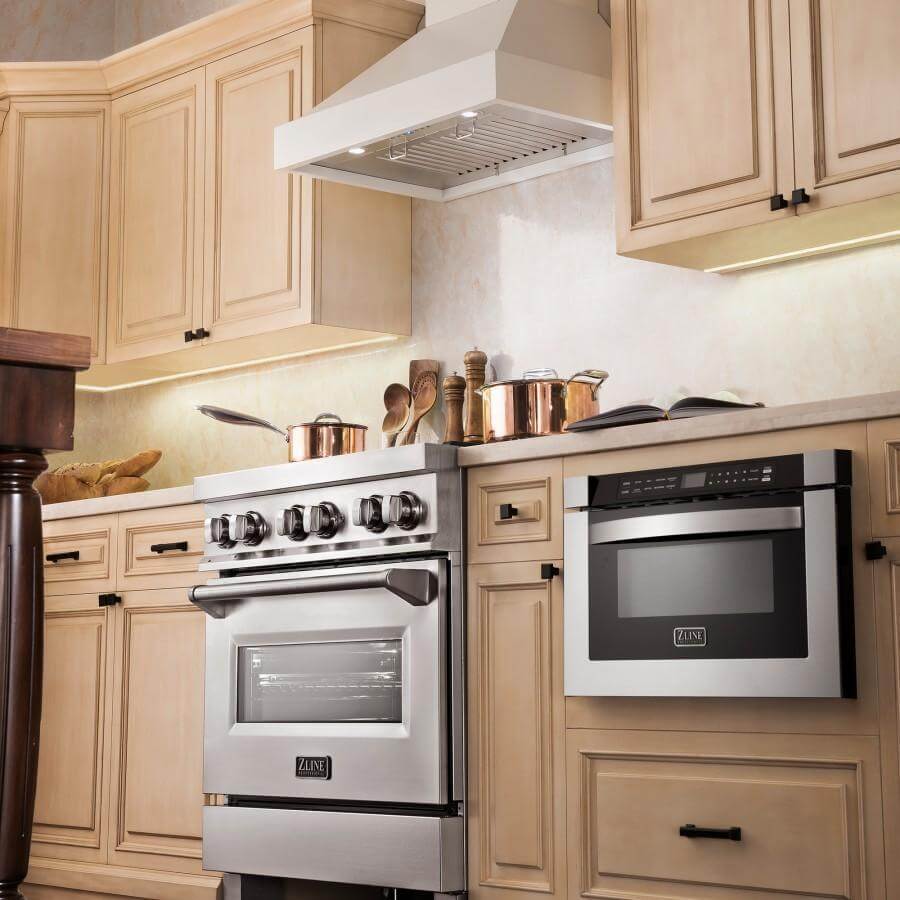

ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30)
ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30)
ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30)
ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30)
ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30)
ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30)
Color swatches for ZINE Autograph Edition finishes. Top to bottom: Champagne Bronze, Matte Black, Polished Gold, and Polished Nickel.
ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30)
ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30)
ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30)

ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30)

MSRP:
$727.99
$909.99
The ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.

LIFETIME MOTOR WARRANTY

Enjoy the high performance of your ZLINE range hood motor for years to come with an industry-first lifetime motor warranty
Icon and image representing lifetime range hood motor warranty
Icon and image representing dishwasher safe range hood baffle filters

DISHWASHER SAFE BAFFLE FILTERS

Reduce cleaning time with durable stainless steel baffle filters that are dishwasher safe

BUILT-IN LED LIGHTING

Easily illuminate your cooking space with bright built-in LED lights
Icon and image representing range hood with built-in LED lighting

Specifications

Description

The ZLINE 30 in. Ducted Wooden Wall Mount Range Hood in Cottage White (KBTT-30) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.

This product contains many unique features such as:

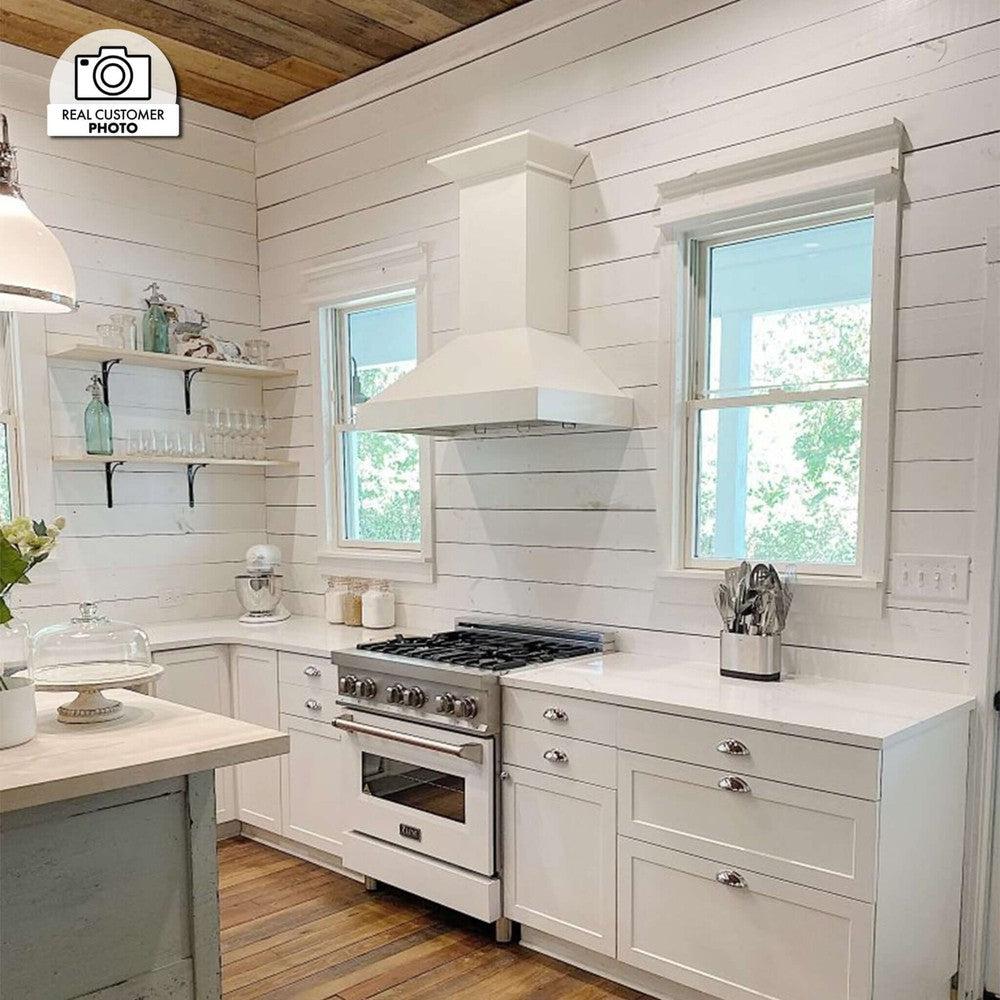

  • Wall Mount Design - This chimney-style range hood is designed to install seamlessly into custom-built cabinetry set-ups by mounting directly to the wall above your cooktop
  • Cottage White Wood Finish - Featuring an elegant cottage white hand-crafted pine wood finish paired with a stainless steel inner frame to add a rustic flair to any custom kitchen design
  • Convenient Control Panel - Easy-to-use push button controls let you easily adjust fan speeds and lighting options
  • 4-Speed Fan Control - Choose the appropriate air flow among 120/240/320/400 CFM for your cooking situation
  • Powerful Ventilation - The highest speed setting of 400 CFM air flow efficiently moves large amounts of air away from your cooking area

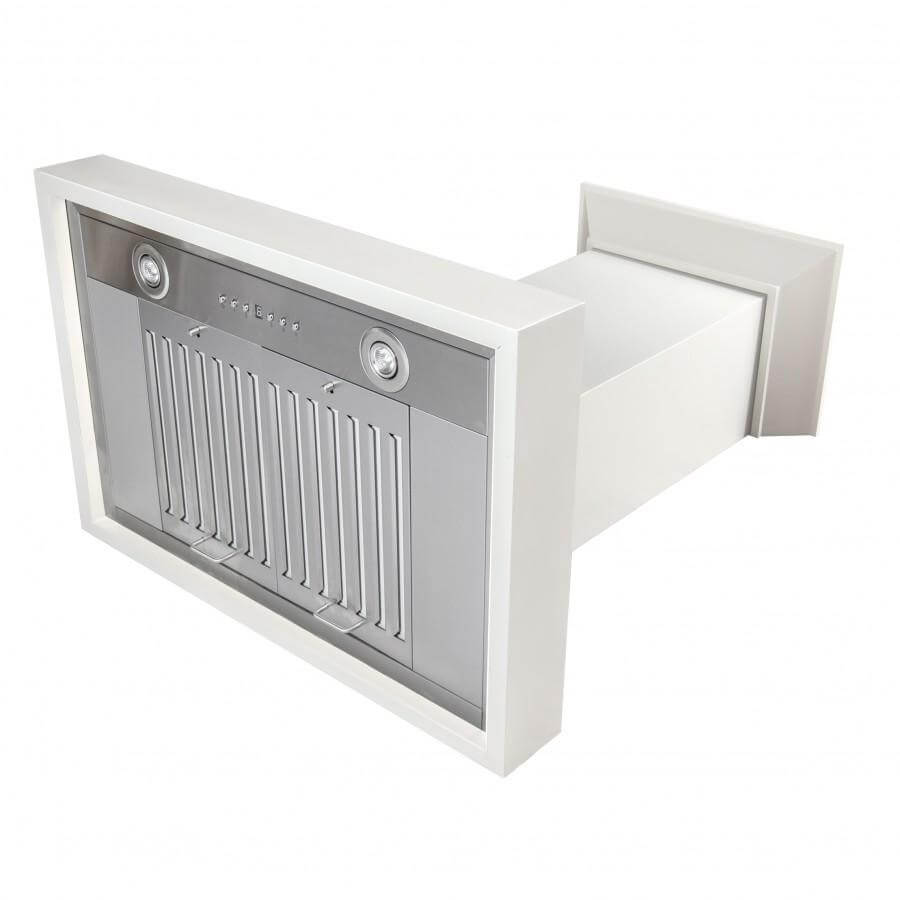

  • Minimal Cleaning - This range hood includes dishwasher-safe stainless steel baffle filters that are easy to remove for regular cleaning
  • LED Lighting - ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
  • Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
  • Standard Ductwork - ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 6 in. diameter ducting
  • Warranty - ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty
  • Additional Assembly Required - This product ships in multiple boxes and will require minimal assembly upon arrival

Dimensions

Dimensions:
30 in. W x 18 in. D x 13.25 in. H
Product Depth (in.):
18.0
Product Width (in.):
30
Product Height (in.):
13.3

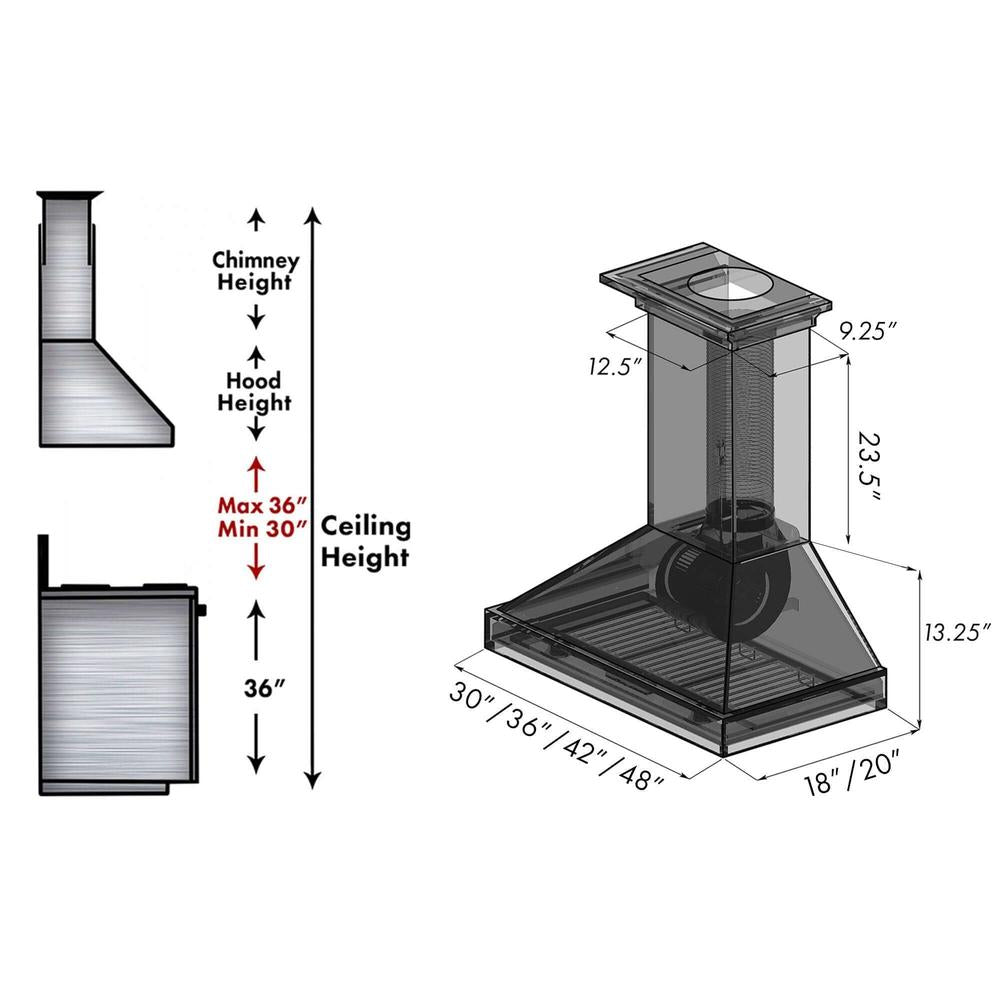

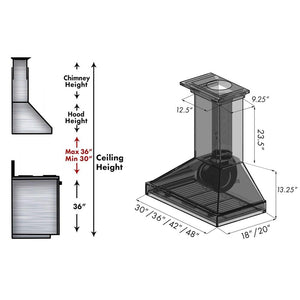

Chimney Dimensions:
12.5" W x 9.25" D x 23.5" H
Cutout Dimensions:

Details

Appliance Category:
Wall Mount RH
Color/ Finish Family:
Solid Wood Exterior with Stainless Steel Insert, Cottage White Painted Finish
Hardware Color/Finish:
Airflow (Q/L/M/H):
120/240/320/400
Motor:
High Performance 400 CFM/4-Speed Motor
Filters:
Stainless Steel Baffle Filters (Dishwasher-safe)
Mount Type:
Wall Mount
Number of Lights:
2
Number of Speeds:
4
Control Type:
Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Button Panel:
Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
Product Weight (lb.):
55
Decibels:
51/55/58/61
Duct Size:
6
Voltage:
110
Amps:
3.5

Warranties & Certifications

Certifications and Listings:
ETL Listed,CEC Listed
Manufacturer Warranty:
3 year parts, life-time motor warranty
