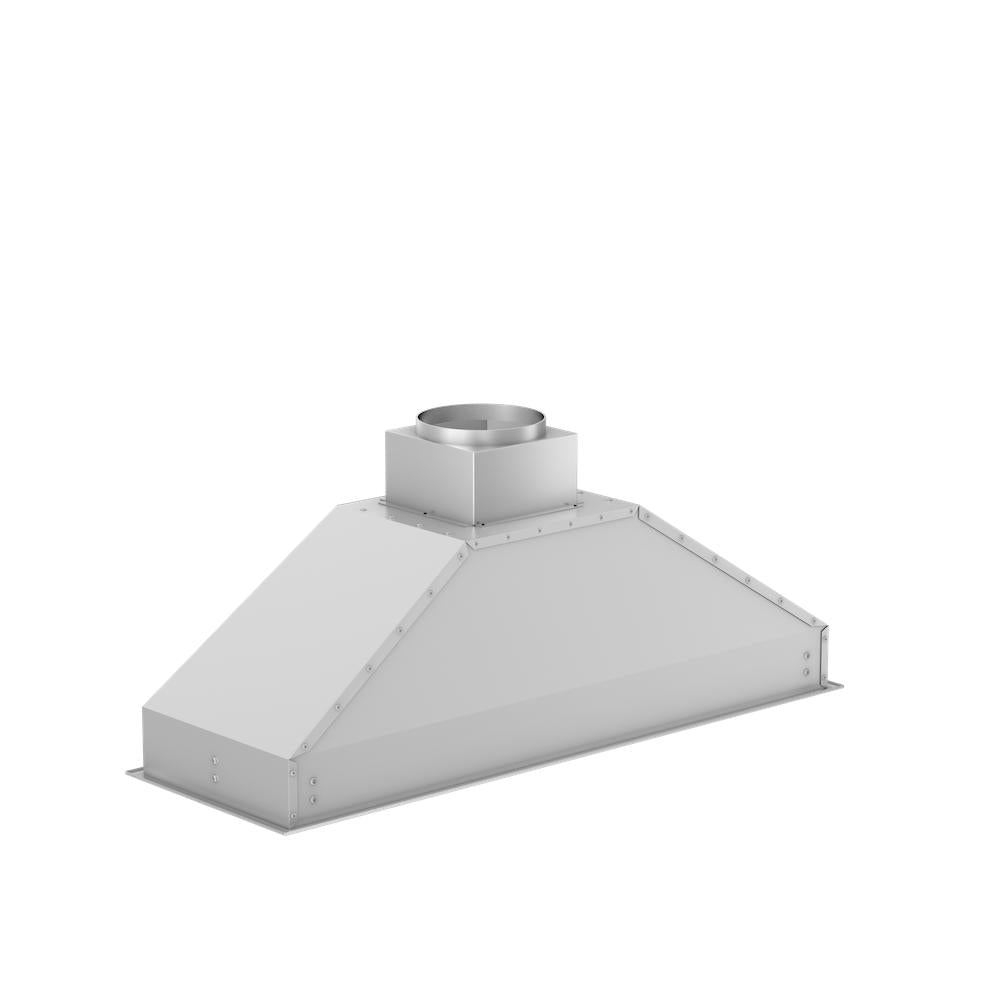

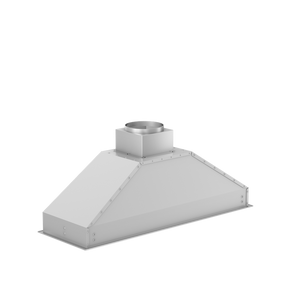

ZLINE 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (695-46) main image.

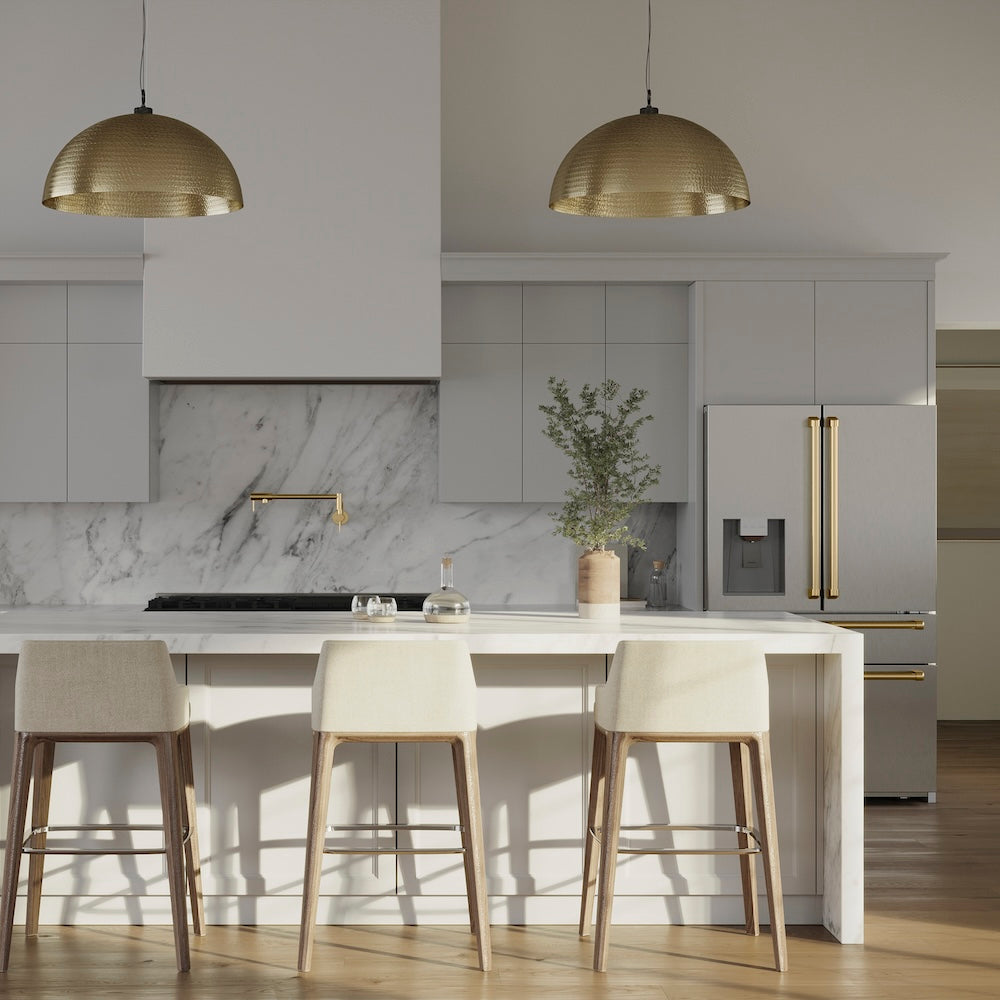

Modern kitchen with marble backsplash, gold fixtures, white island, and a large custom range hood using a ZLINE 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (695-46).

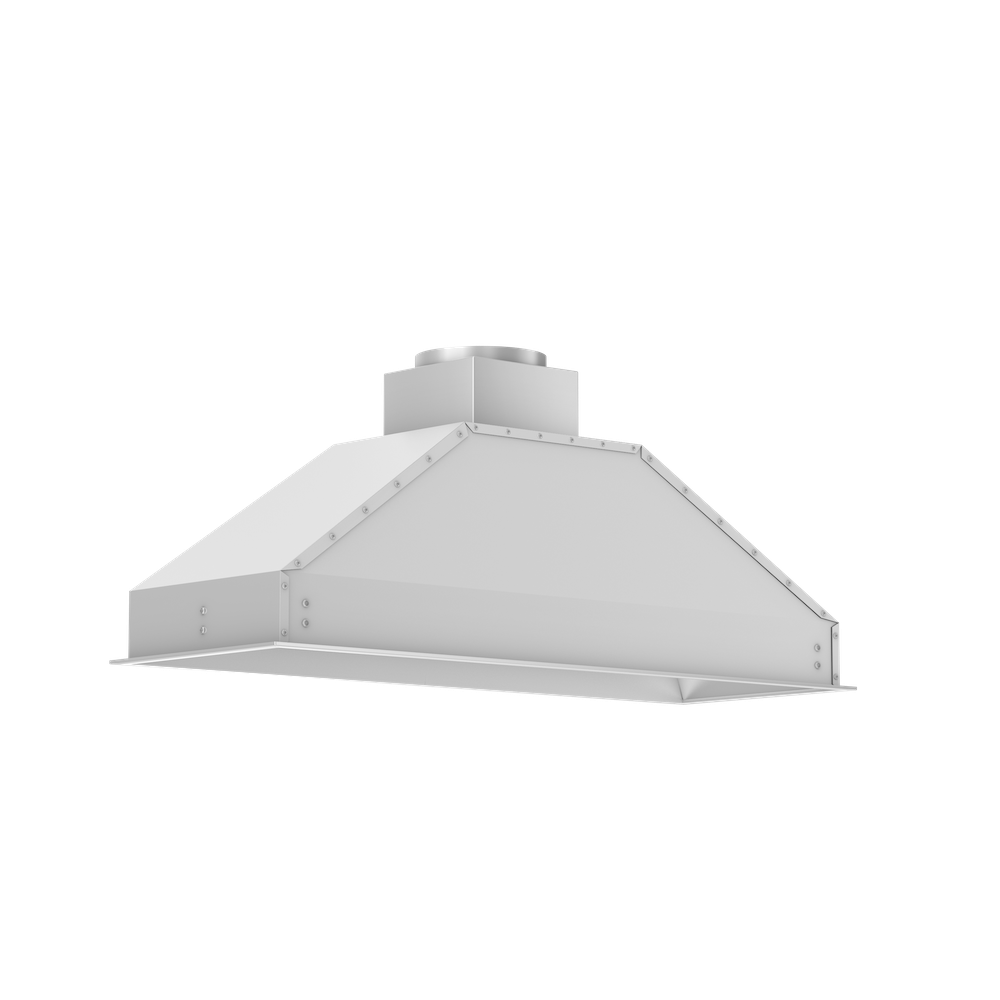

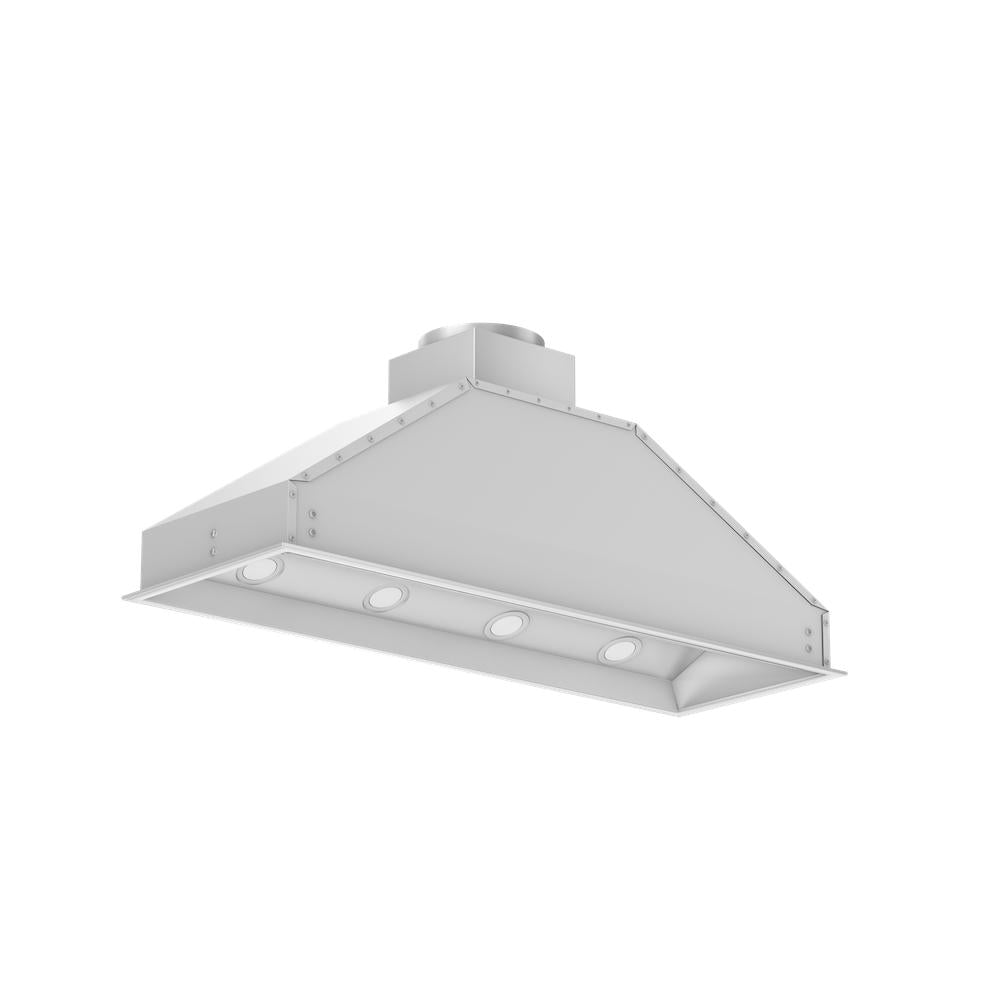

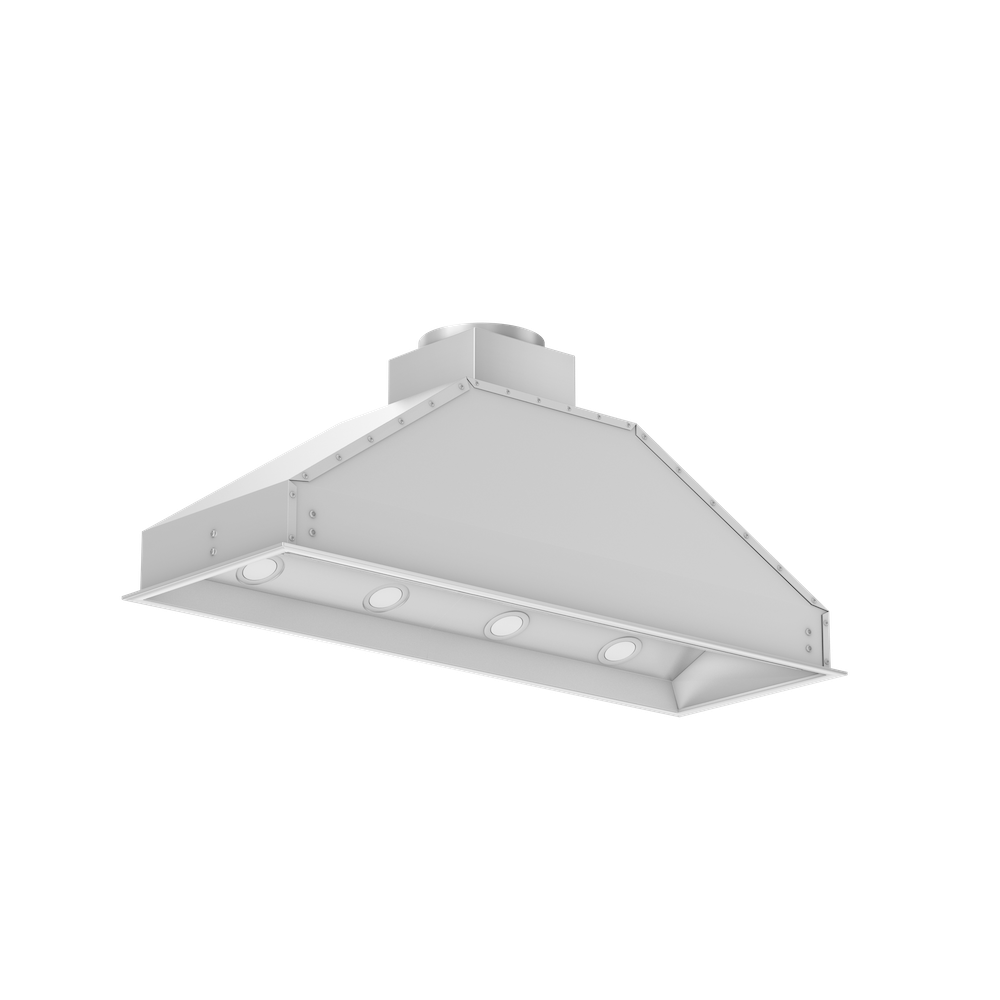

ZLINE 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (695-46) side, under.

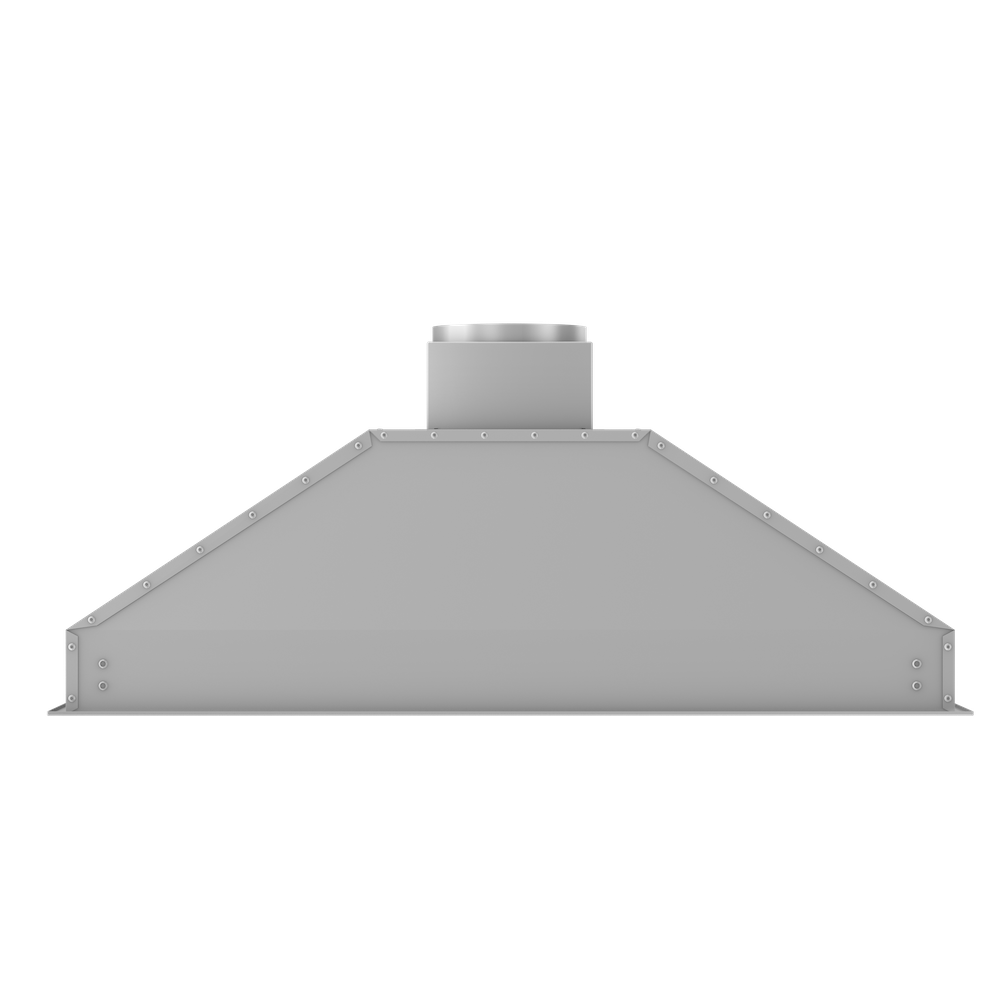

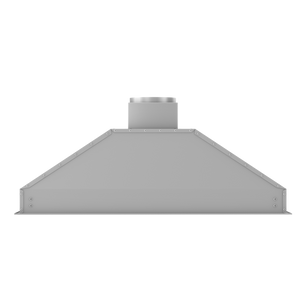

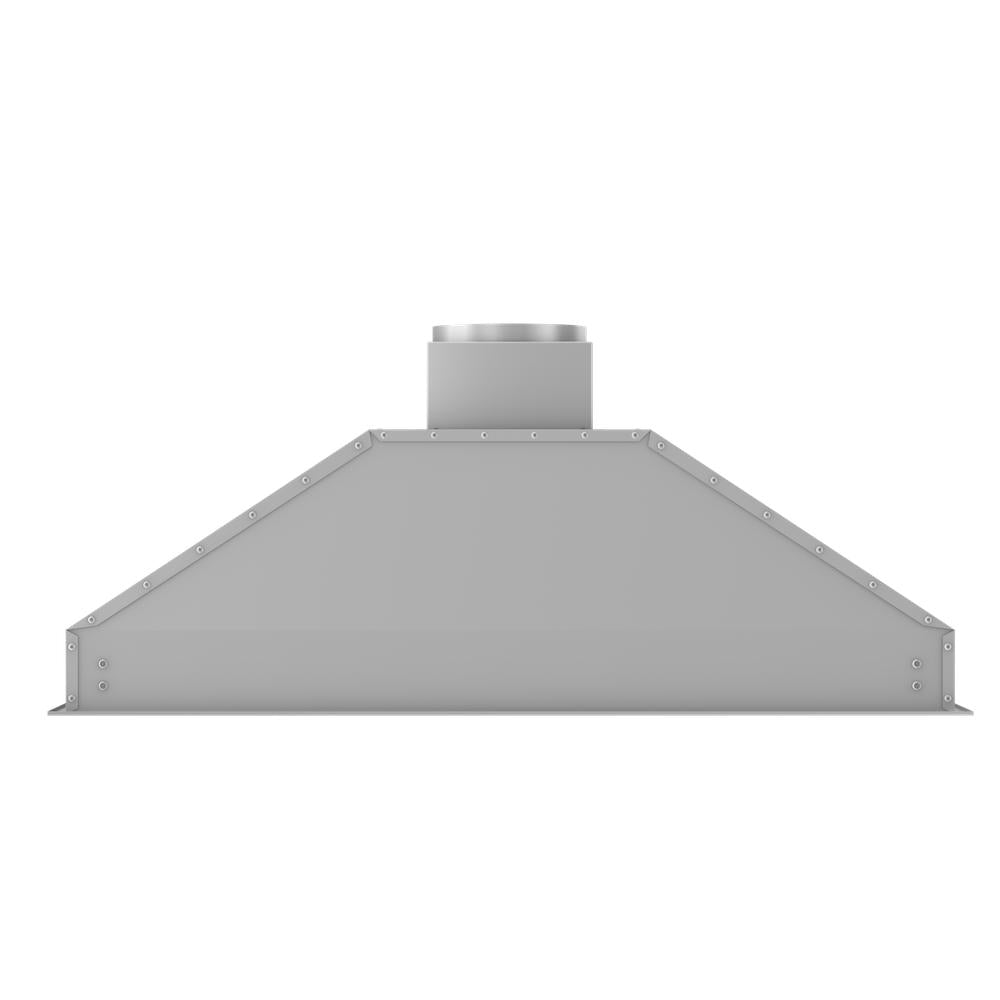

ZLINE 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (695-46) front.

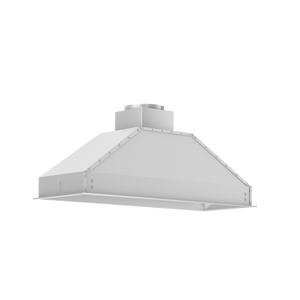

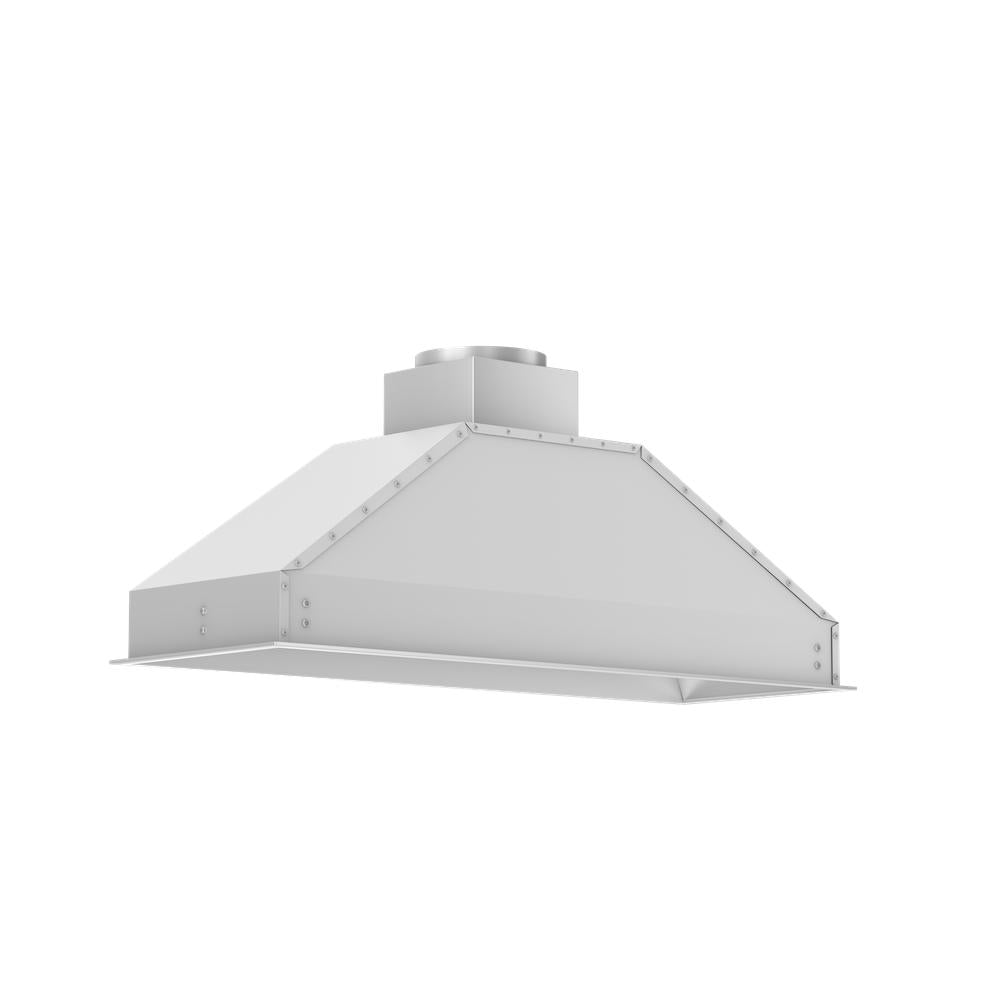

ZLINE 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (695-46) side.

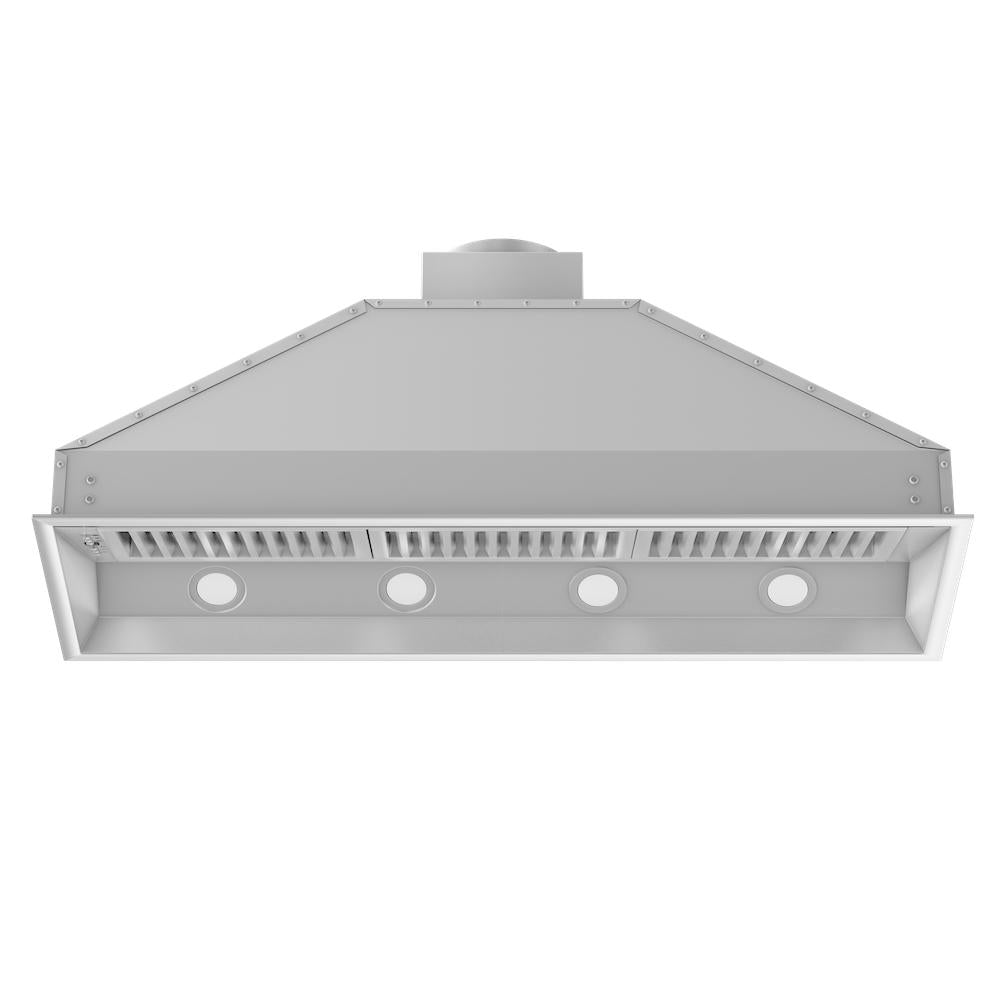

ZLINE 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (695-46) front, under.

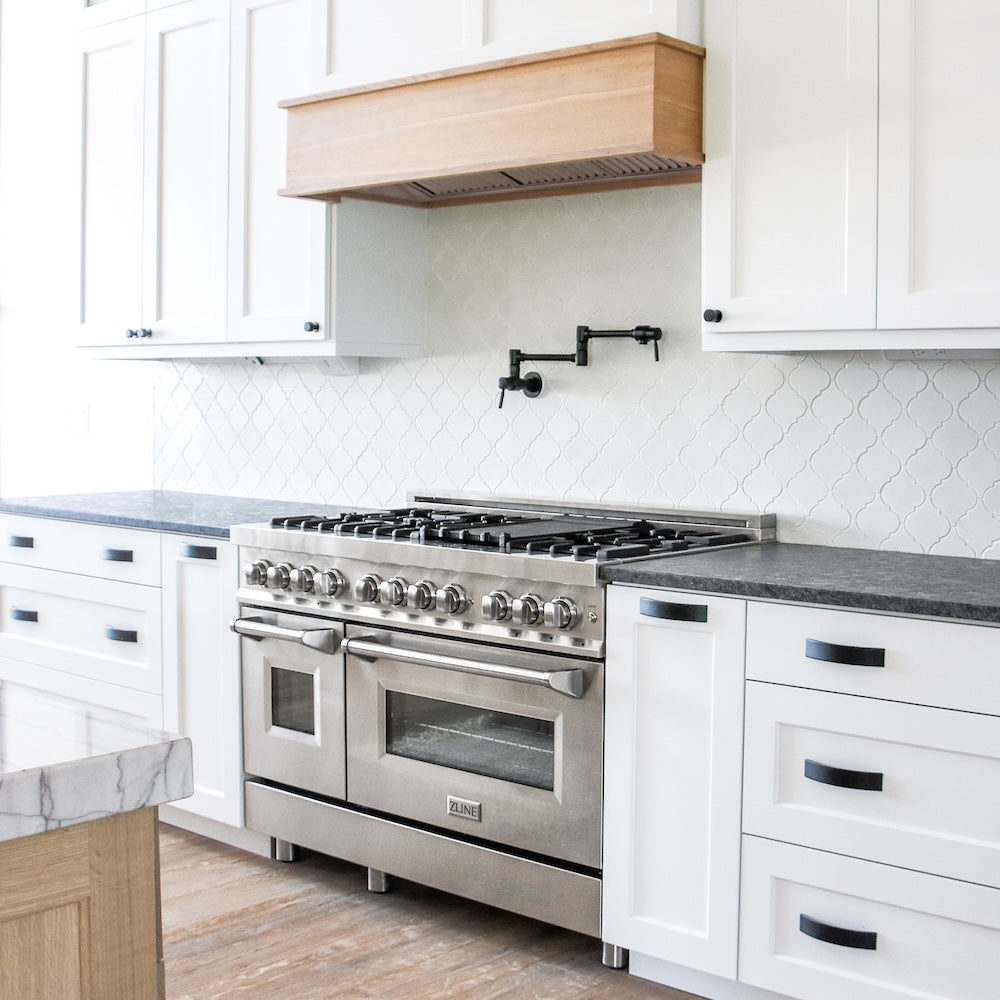

Modern farmhouse kitchen with stainless steel range, white cabinets, and a custom rangehood using a ZLINE 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (695-46).

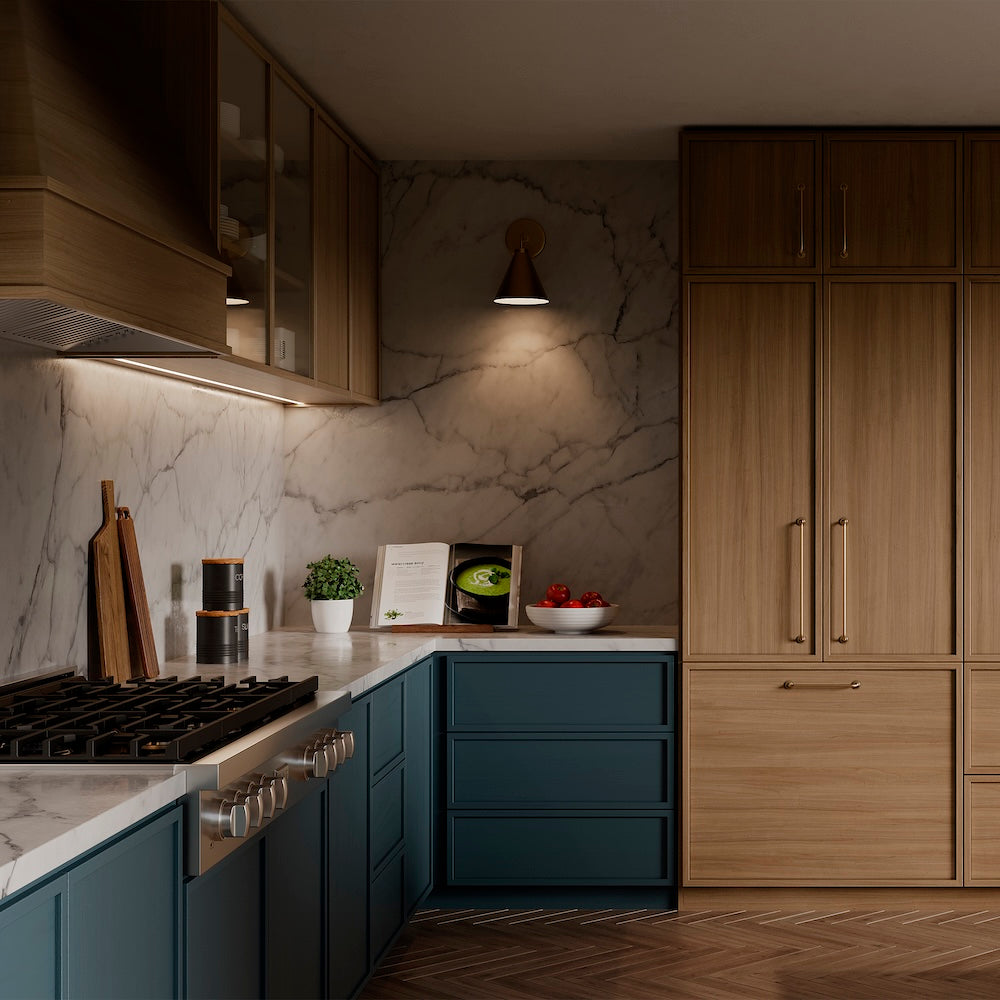

Modern kitchen with wooden cabinets, marble backsplash, and a custom range hood using a ZLINE 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (695-46).

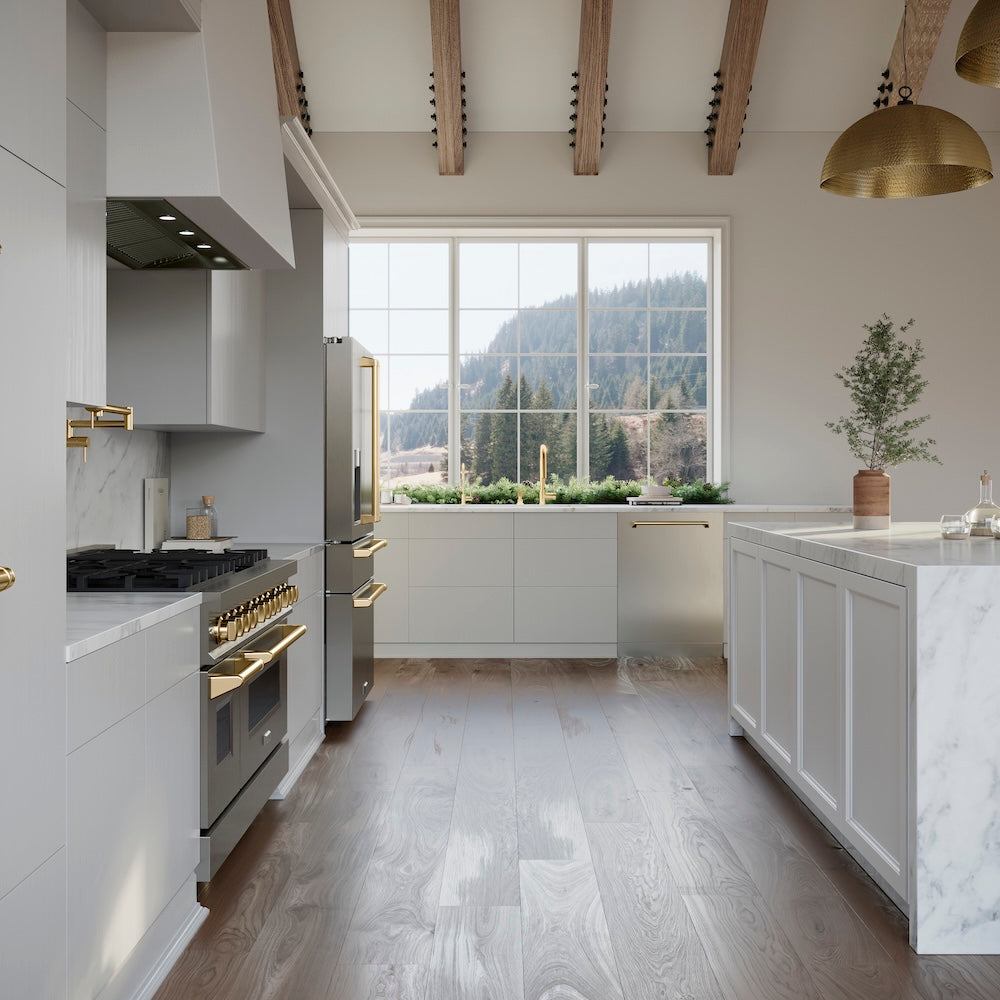

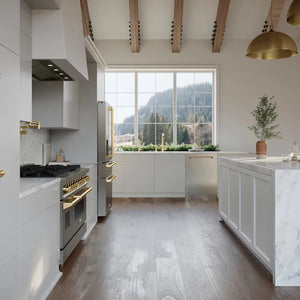

Modern farmhouse kitchen with white cabinets, stainless steel appliances, a large window view of trees, and a custom range hood using a ZLINE 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (695-46).

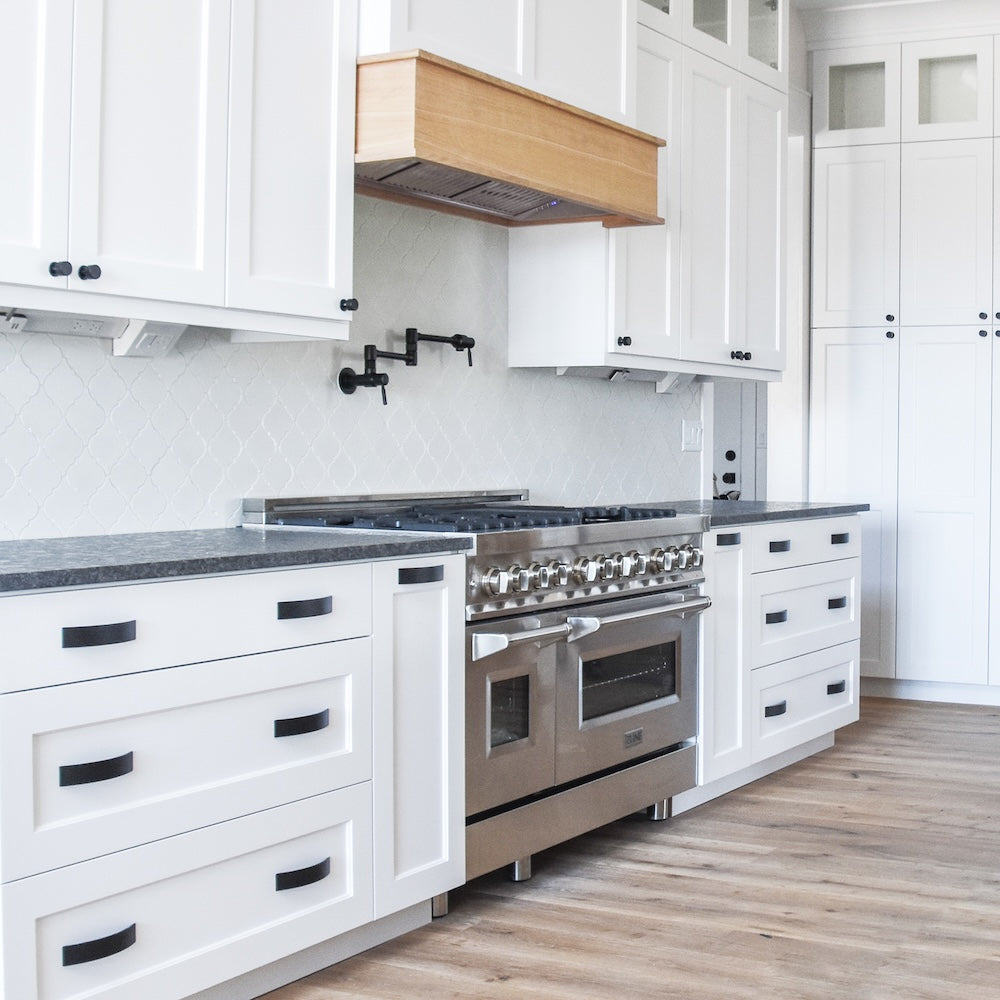

Farmhouse kitchen with white cabinets, stainless steel appliances, wooden flooring, and a custom range hood using a ZLINE 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (695-46).
Color swatches for ZINE Autograph Edition finishes. Top to bottom: Champagne Bronze, Matte Black, Polished Gold, and Polished Nickel.

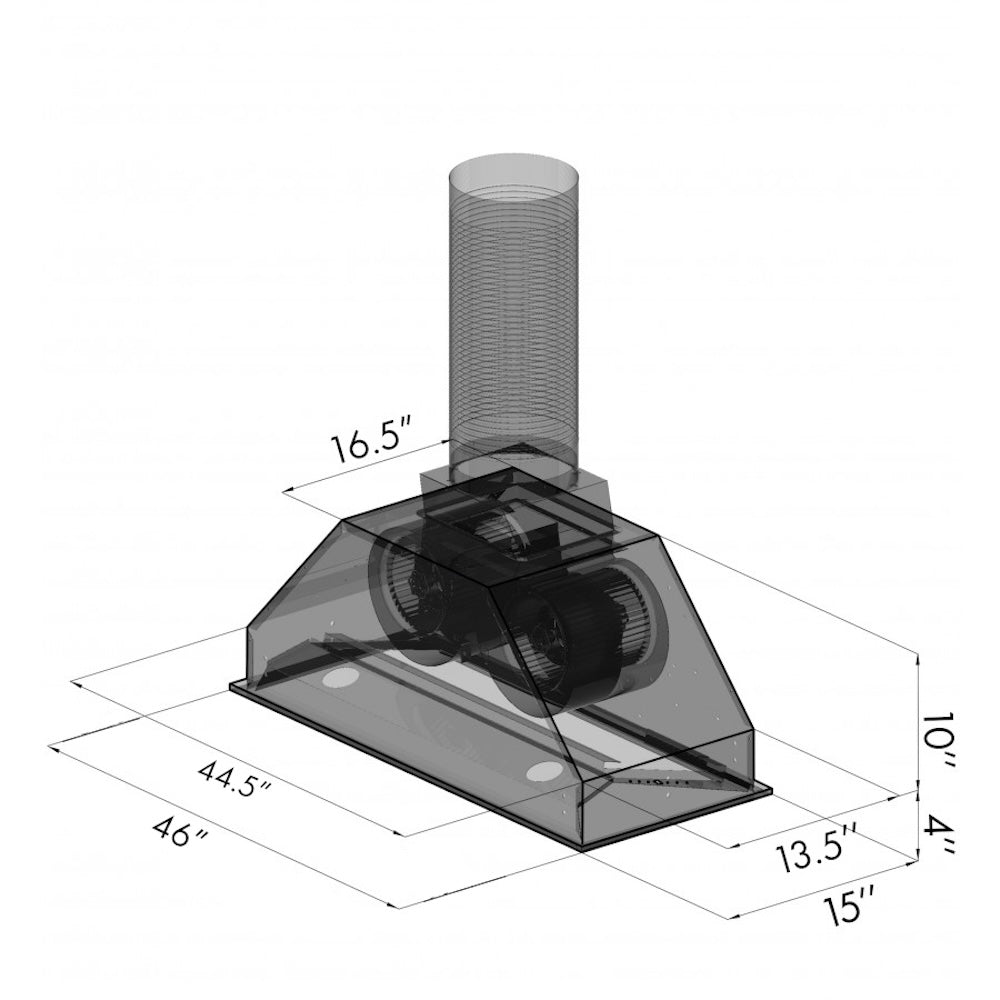

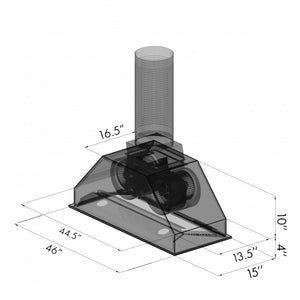

ZLINE 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (695-46) with dimensions labeled.

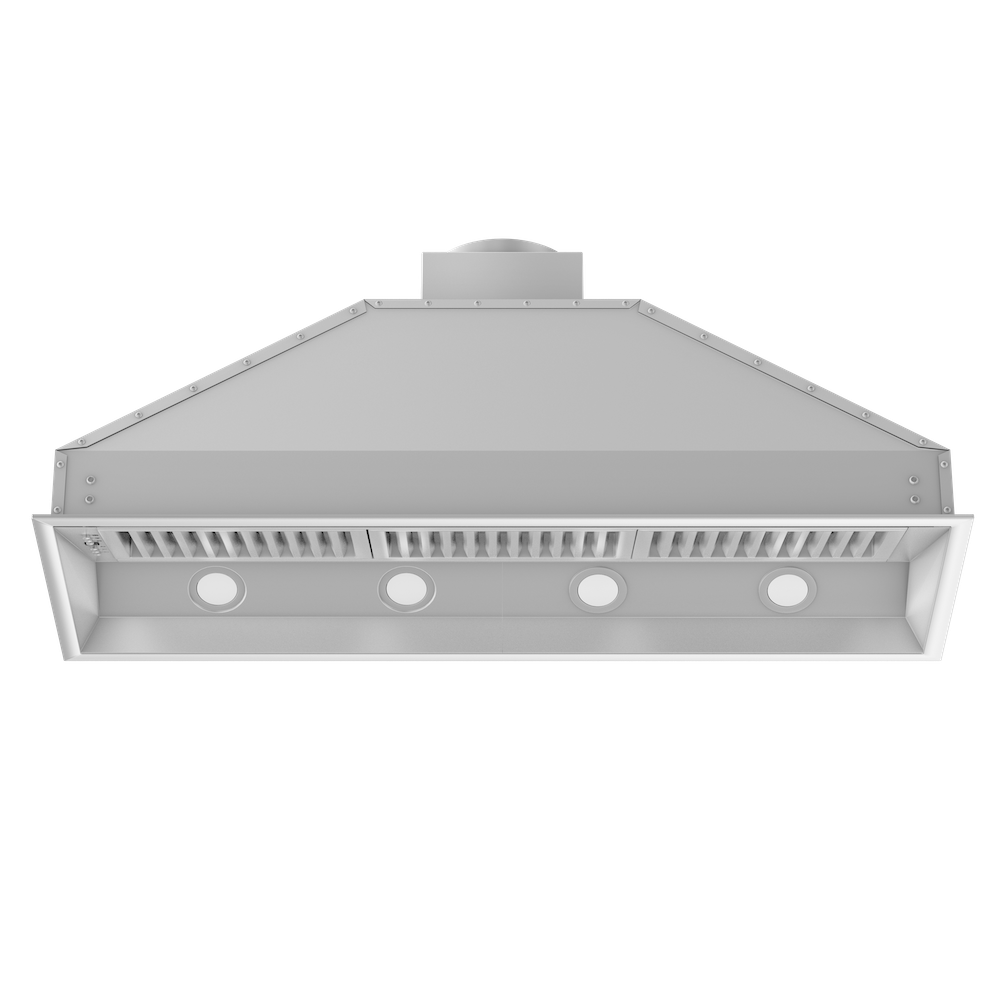

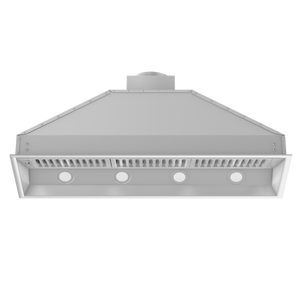

ZLINE 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (695-46)

MSRP:
$863.99
$959.99
The ZLINE 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (695-46) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.

LIFETIME MOTOR WARRANTY

Enjoy the high performance of your ZLINE range hood motor for years to come with an industry-first lifetime motor warranty
Icon and image representing lifetime range hood motor warranty
Icon and image representing dishwasher safe range hood baffle filters

DISHWASHER SAFE BAFFLE FILTERS

Reduce cleaning time with durable stainless steel baffle filters that are dishwasher safe

BUILT-IN LED LIGHTING

Easily illuminate your cooking space with bright built-in LED lights
Icon and image representing range hood with built-in LED lighting

Specifications

Description

The ZLINE 46 in. Ducted Wall Mount Range Hood Insert in Stainless Steel (695-46) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.

This product contains many unique features such as:

  • Integrated Insert Design - This ZLINE wall mount range hood insert is designed to install seamlessly into custom-built cabinetry set-ups, providing professional-grade power without the visible exterior shell
  • Corrosion-Resistant Stainless Steel - Manufactured with brushed 430 grade stainless steel, which contains rust and corrosion-resistant properties to ensure a durable insert that will last for years to come
  • Convenient Control Panel - Easy-to-use push button controls let you easily adjust fan speeds and lighting options
  • 4-Speed Fan Control - Choose the appropriate air flow among 280/420/560/700 CFM for your cooking situation
  • Powerful Ventilation - The highest speed setting of 700 CFM air flow efficiently moves large amounts of air away from your cooking area
  • Minimal Cleaning - This range hood includes dishwasher-safe stainless steel baffle filters that are easy to remove for regular cleaning
  • Standard Ductwork - ZLINE range hoods are designed to fit standard (circular) ductwork for simple installation; this hood includes a transition piece for 8 in. diameter ducting
  • LED Lighting - ZLINE range hoods come equipped with energy-efficient LED lights to illuminate the cooking surface below
  • Electrical Requirements - Requires a dedicated 120V, 60Hz, 15-amp circuit with a NEMA 5-15 3-wire plug system
  • Warranty - ZLINE range hoods carry a 3-year parts-only warranty, in addition to a lifetime motor warranty

Dimensions

Dimensions:
46.0625 in. W x 15 in. D x 14.0625 in. H
Product Depth (in.):
15
Product Width (in.):
46
Product Height (in.):
14.0625
Chimney Dimensions:
Cutout Dimensions:

Details

Appliance Category:
Insert Range Hood
Color/ Finish Family:
Brushed 430 Stainless Steel
Hardware Color/Finish:
-
Airflow (Q/L/M/H):
280/420/560/700
Motor:
High Performance 700 CFM/4-Speed Motor
Filters:
Stainless Steel Baffle Filters (Dishwasher-safe)
Mount Type:
Insert
Number of Lights:
4
Number of Speeds:
4
Control Type:
Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Button Panel:
Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
Product Weight (lb.):
55
Decibels:
30/41/49/52
Duct Size:
8
Voltage:
110
Amps:
5

Warranties & Certifications

Certifications and Listings:
ETL Listed,CEC Listed
Manufacturer Warranty:
3 year parts, life-time motor warranty
