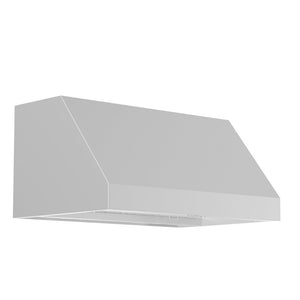

ZLINE 48 in. Convertible Vent Under Cabinet Range Hood in Stainless Steel (523-48)

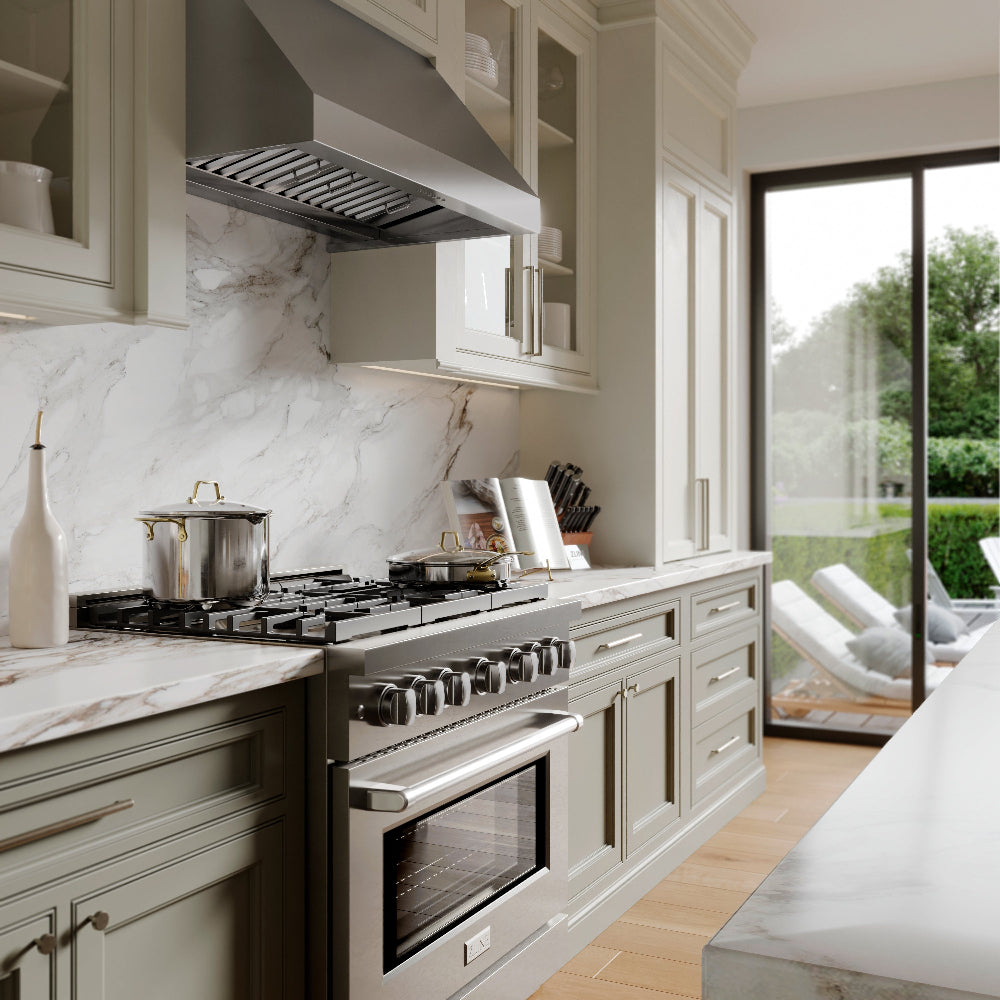

Modern kitchen with ZLINE 48 in. Convertible Vent Under Cabinet Range Hood in Stainless Steel (523-48) and marble countertops

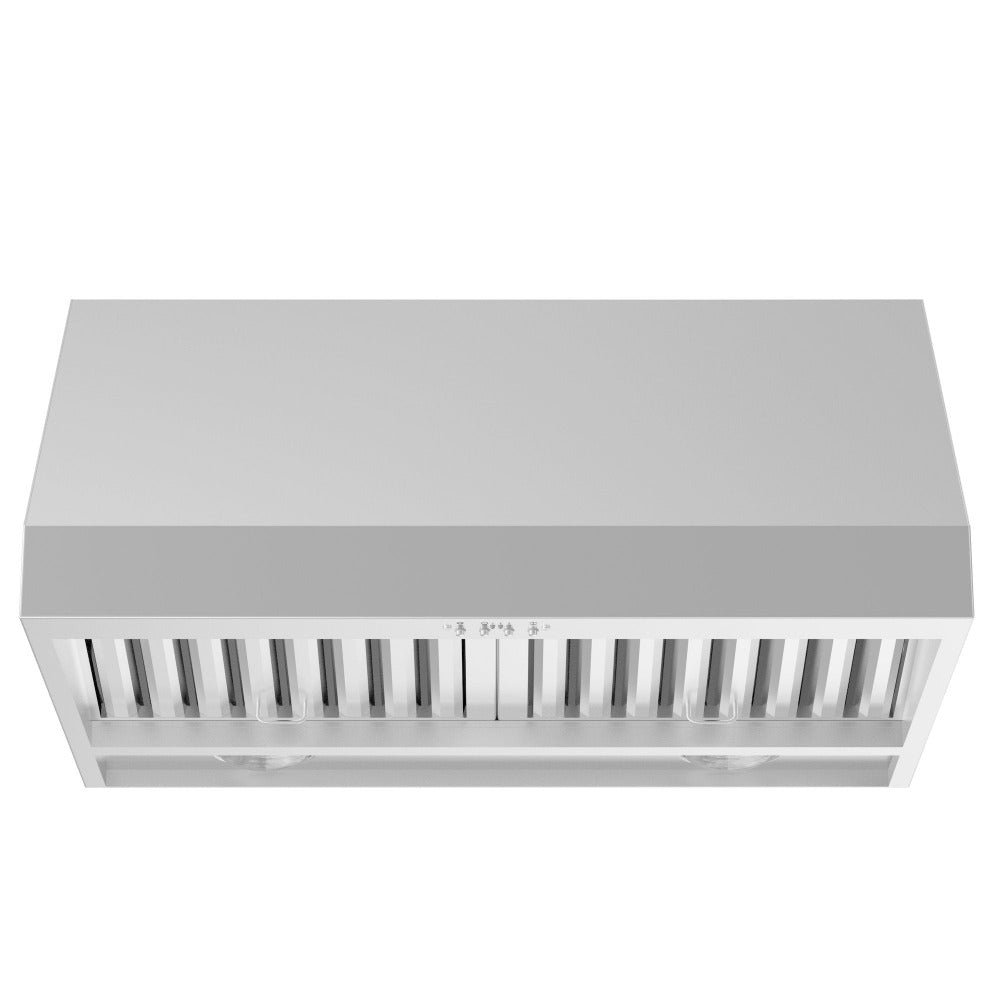

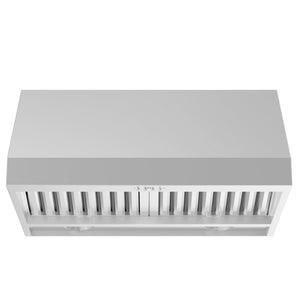

ZLINE 48 in. Convertible Vent Under Cabinet Range Hood in Stainless Steel (523-48) front, under.

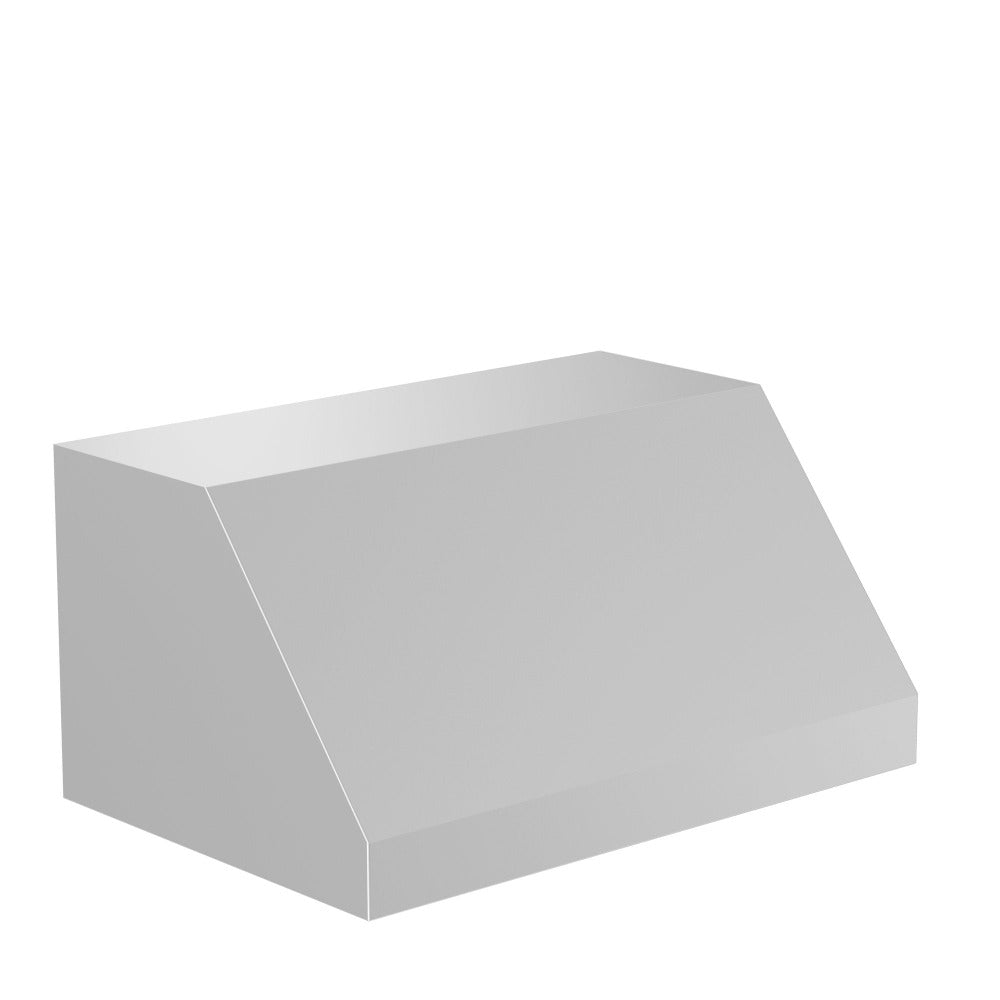

ZLINE 48 in. Convertible Vent Under Cabinet Range Hood in Stainless Steel (523-48) side, above.

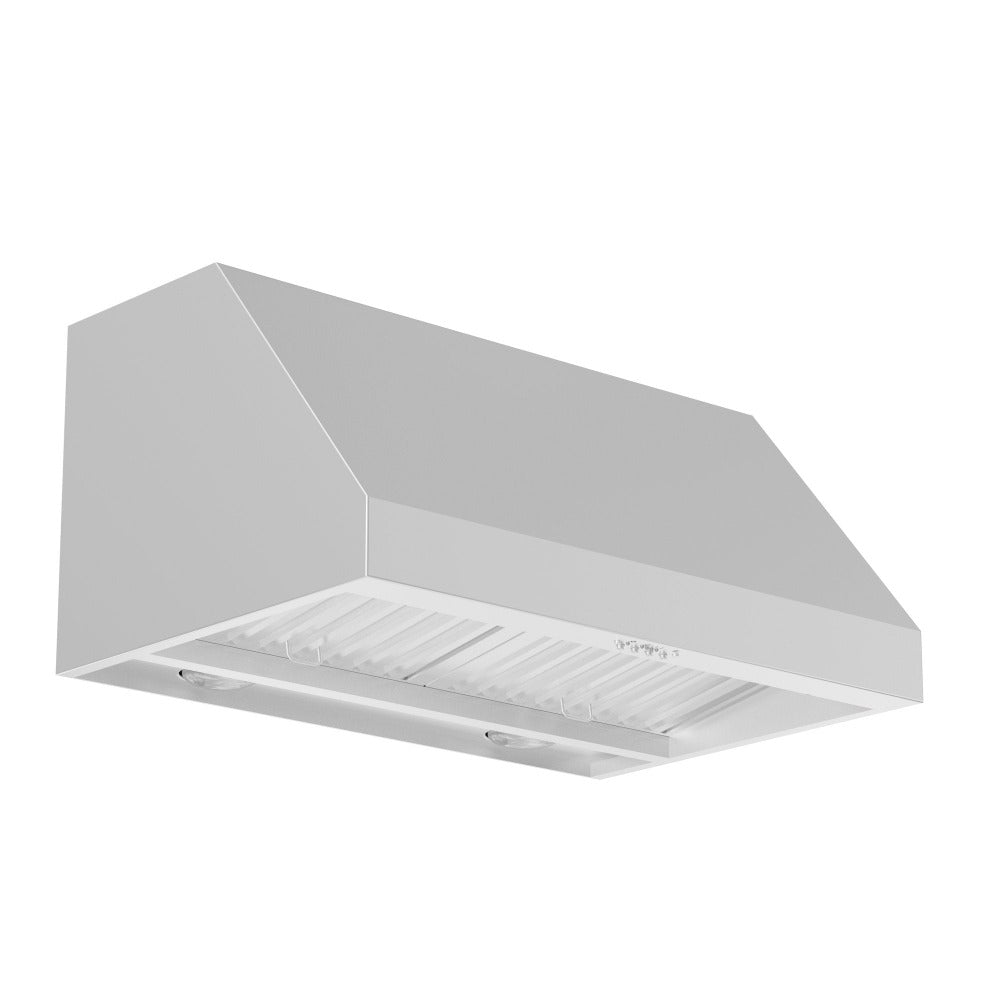

ZLINE 48 in. Convertible Vent Under Cabinet Range Hood in Stainless Steel (523-48) side, under.

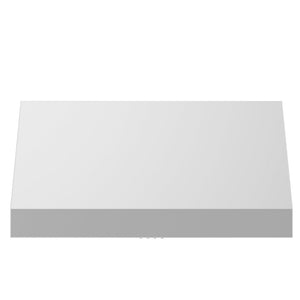

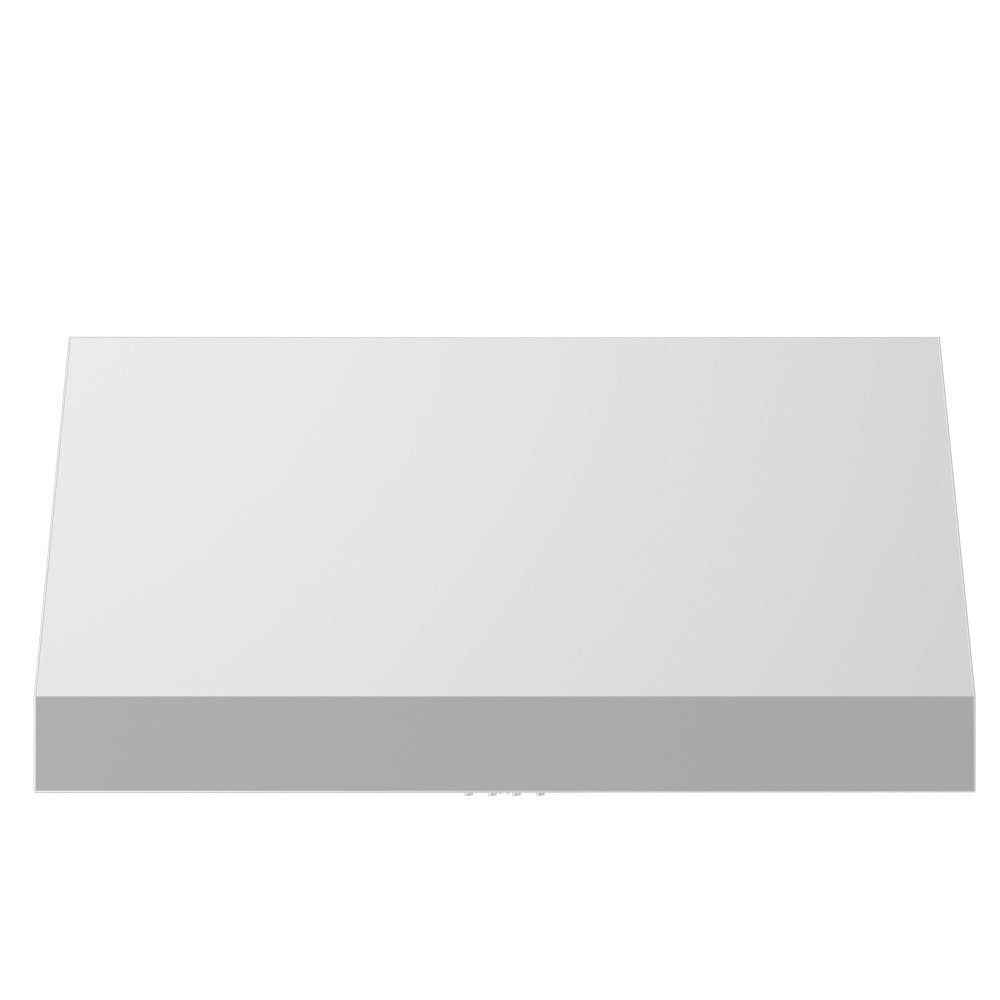

ZLINE 48 in. Convertible Vent Under Cabinet Range Hood in Stainless Steel (523-48) front.

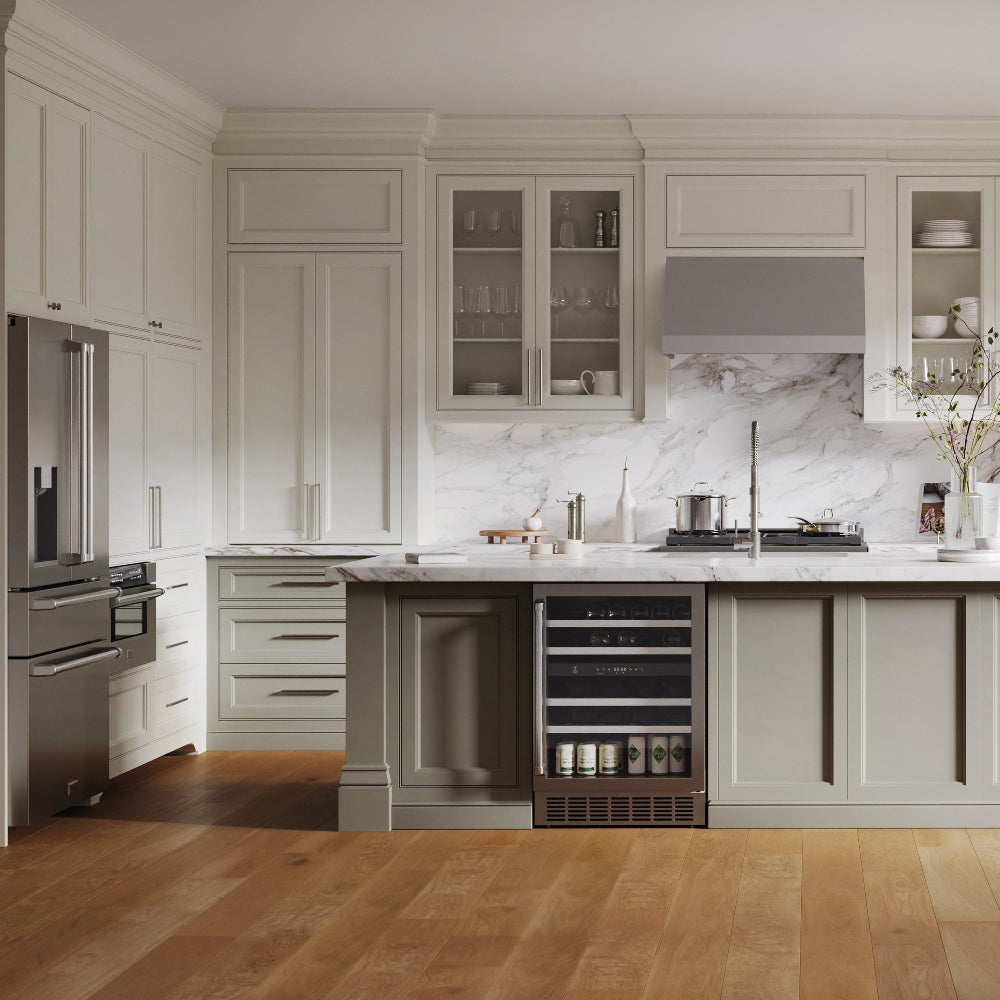

Modern kitchen with ZLINE 48 in. Convertible Vent Under Cabinet Range Hood in Stainless Steel (523-48), gray cabinets, marble countertop, and stainless steel appliances.

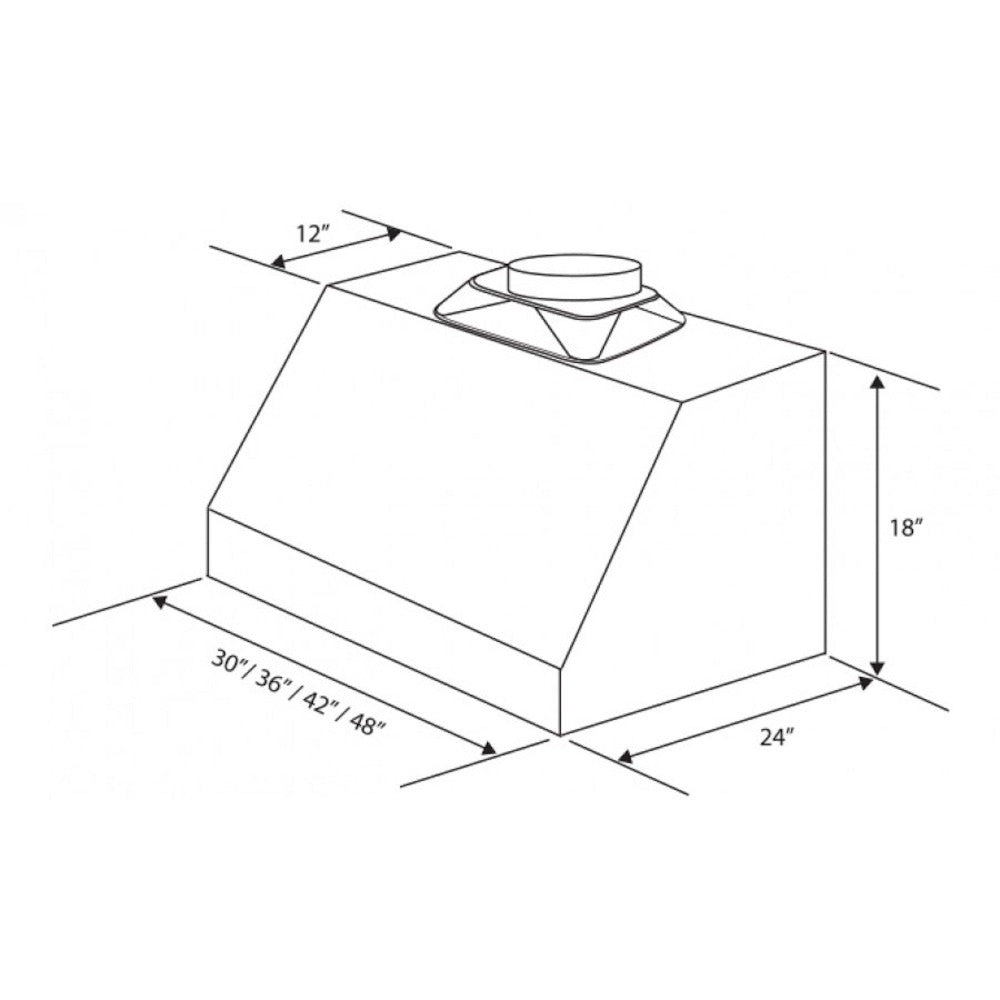

ZLINE 48 in. Convertible Vent Under Cabinet Range Hood in Stainless Steel (523-48) dimensional diagram.

ZLINE 48 in. Convertible Vent Under Cabinet Range Hood in Stainless Steel (523-48)

MSRP:
$1,487.49
$1,749.99

Luxury isn’t meant to be left desired—it’s meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 48 in. Convertible Vent Under Cabinet Range Hood in Stainless Steel (523-48) provides a professional culinary experience by pairing built-to-last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen’s capability.

Specifications

Description

Luxury isn't meant to be left desired - it's meant to be attainable. Designed in Lake Tahoe, USA, the ZLINE 48 in. Convertible Vent Under Cabinet Range Hood in Stainless Steel (523-48) provides a professional culinary experience by pairing built to last quality with a timeless style. Achieve ZLINE Attainable Luxury® excellence with unrivaled performance designed to enhance your kitchen's capability.

This product contains many unique features such as:

  • Convertible range hood - this unit can be externally vented or recirculated (ductless) with charcoal filters (not included, model number RK) to reduce harmful odors
  • Easy-to-use push button controls let you easily control fan speed and lighting
  • 4-Speed fan control (480/560/650/700 CFM) to choose the appropriate air flow for your cooking situation
  • 700 CFM air flow (highest speed setting) efficiently exhausts large amounts of air away from your cooking area
  • Ductwork easily connects to the top of the range hood for external venting
  • Dishwasher-safe Stainless Steel Baffle Filters
  • LED lighting illuminates the cooktop beneath the hood
  • Designed to fit standard (circular) ductwork for simple installation
  • Brushed 430 stainless steel adds that sharp, elegant look to your kitchen
  • 110V/60HZ
  • 3 year parts warranty, life-time motor warranty

Dimensions

Dimensions:
48 in. W x 24 in. D x 18 in. H
Product Depth (in.):
24.0
Product Width (in.):
48
Product Height (in.):
18.0
Chimney Dimensions:
Cutout Dimensions:

Technical Information

Appliance Category:
Undercab RH
Color/ Finish Family:
Stainless Steel
Hardware Color/Finish:
Airflow (Q/L/M/H):
480/560/650/700
Motor:
High Performance 700 CFM/4-Speed Motor
Filters:
Stainless Steel Baffle Filters (Dishwasher-safe)
Mount Type:
Number of Lights:
3
Number of Speeds:
4
Control Type:
Button Panel:
Push Button Control Panel (4-Speed Fan Control/Lights/3 Minute AutoTimer with Delayed Shutoff)
Product Weight (lb.):
90
Decibels:
48/55/63/65
Duct Size:
8
Voltage:
110
Amps:
3.5

Warranties & Certifications

Certifications and Listings:
ETL Listed,CEC Listed
Manufacturer Warranty:
3 year parts, life-time motor warranty
